Máy Chấn Tôn CNC Thủy Lực Cân Bằng WC67E

Features:
○Standard two axis (Y-X)
○Mechanical torque synchronization
○Machine welded structure with good rigidity and stability
○CNC system help machine get higher precision
○Back gauge ball screw, linear guide, servo motor, Belt control, Effectively guarantee the accuracy and efficiency
○Front and rear safety guards, laser protection can be optional

Standard Configuration:
1.Control system-DA41 DELEM
2.Seals, dust ring-Japanese NOK
3.Hydraulic valves system-Rexroth
4.Low noise gear pump- Sunny U.S.A
5.Main Electrical box parts- Schneider
6.Limit switch-Schneider
7.Ball screw& linear guide- TaiWan HIWIN
8.Servo motor-Estun

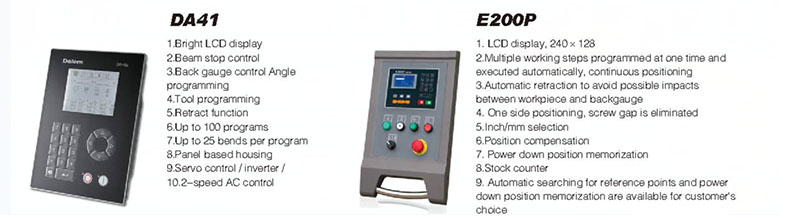

System Options:

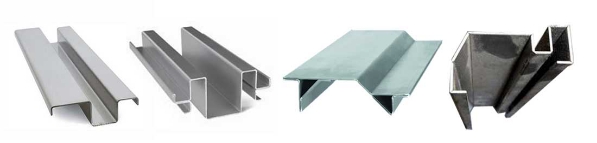

Work profile:
This product Advanced technology, reliable performance.
Widely used in kitchen equipment, doors, electrical industry, automobile industry, etc.

Advantage of our CNC  press brake
1)Press brake working precision : +-0.5°
2)Press brake holding time: 0.2 seconds
3)Running speed fast : For example,100T press brake slider down ,100mm/s ,compare to others: 60mm/s
4)Back gauge and stroke adjustment speed fast :250mm/s
Low noise :70 decibel (we adopt imported coupling

What should we know for choosing a press brake ?
1)What’s your material of sheet ?
2)What’s the minimum and maximum thickness of your sheet ?
3)What’s the minimum and maximum width of your sheet ?
4)What kind of product you make ?
5)What’s the precision do you require for making products ?

PARAMETER

Model Nominal Pressure(KN) Length of Table(mm) Distance between columns(mm) Throat Depth(mm) Stroke(mm) Open Height(mm) Main Motor(KW) Overall Dimensions L*W*H(mm)
30t/1600 300 1600 1304 200 80 260 3 1600*800*1780
30t/2000 300 2000 1304 200 80 260 3 2000*800*1780
40t/2200 400 2200 1850 220 100 320 5.5 2200*1200*1900
40t/2500 400 2500 2030 220 100 320 5.5 2500*1200*1900
63t/2500 630 2500 1970 250 100 320 5.5 2500*1600*2200
63t/3200 630 3200 2510 250 100 320 5.5 3200*1600*2200
80t/2500 800 2500 2050 250 100 320 5.5 2500*1700*2250
80t/3200 800 3200 2510 250 100 320 5.5 3200*1700*2300
100t/3200 1000 3200 2510 320 120 350 7.5 3200*1800*2500
100t/4000 1000 4000 3100 320 120 350 7.5 4000*1800*2500
125t/3200 1250 3200 2510 320 120 350 7.5 3200*1850*2500
125t/4000 1250 4000 3100 320 120 350 7.5 4000*1850*2500
160t/3200 1600 3200 2510 320 200 450 11 3200*1900*2700
160t/4000 1600 4000 3040 320 200 450 11 4000*1900*2700
160t/5000 1600 5000 3800 320 200 450 11 5000*1900*3100
160t/6000 1600 6000 4600 320 200 450 11 6000*1900*3300
200t/3200 2000 3200 2600 320 250 580 15 3200*1950*2800
200t/4000 2000 4000 3300 320 250 580 15 4000*1950*2800
200t/5000 2000 5000 3800 320 250 580 15 5000*1950*3000
200t/6000 2000 6000 4600 320 250 580 15 6000*1950*3300
250t/3200 2500 3200 2600 400 250 620 18.5 3200*2000*3200
250t/4000 2500 4000 3300 400 250 620 18.5 4000*2000*3400
250t/5000 2500 5000 3800 400 250 620 18.5 5000*2000*3500
250t/6000 2500 6000 4600 400 250 620 18.5 6000*2000*3600
300t/3200 3000 3200 2600 400 250 620 18.5 3200*2100*3300
300t/4000 3000 4000 3300 400 250 620 18.5 4000*2100*3500
300t/5000 3000 5000 3800 400 250 620 18.5 5000*2100*3700
300t/6000 3000 6000 4600 400 250 620 18.5 6000*2100*4000
400t/4000 4000 4000 3300 400 250 620 22 4000*2200*3600
400t/5000 4000 5000 3800 400 250 620 22 5000*2200*3900
400t/6000 4000 6000 4400 400 250 620 22 6000*2200*4100
500t/4000 5000 4000 3300 400 250 620 30 4000*2400*3500
500t/5000 5000 5000 3800 400 250 620 30 5000*2400*3900
500t/6000 5000 6000 4410 400 320 620 30 6000*2450*4250
500t/7000 5000 7000 5400 400 320 620 30 7000*2550*4350
600t/4000 6000 4000 3300 400 320 650 37 4000*2700*4700
600t/5000 6000 5000 3800 400 320 650 37 5000*2700*4750
600t/6000 6000 6000 4600 400 320 650 37 6000*2700*4950
600t/7000 6000 7000 5400 400 320 650 37 7000*2700*5150
